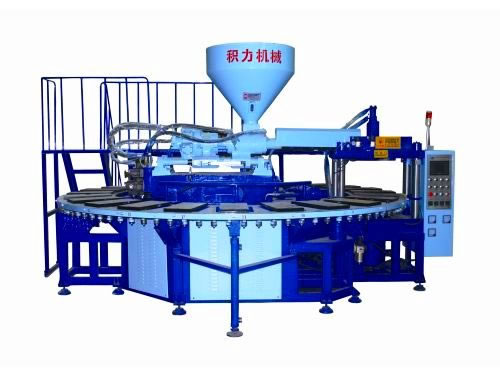

JIC724A PVC Air Blowing Sandal Injection Machine

JIC724A PVC Air Blowing Sandal Injection Machine

Features
1. PVC air blowing injection machine is specialized in production of PVC shoe soles of air blowing slippers, sandals and flip flops.
2. Under controlling of PLC and humanized interface, PVC air blowing shoes injection machine is easy to operate.
3. It is easy and safe to manipulate the PVC air blowing injection machine even without specialists.
4. Switches are applied to the injection mouth, which can save circulation time and increase yield during production.
5. Quality of products is promised, because PVC air blowing injection machine has large injection volume and powerful clamping force.
6. PVC air blowing shoes injection machine is controlled by double proportion system. It assures high quality of products because injection speed, material volume and pressure are adjustable.


Parameters of the PVC Air Blowing Sandal Injection Machine


Item   Specification (A) Specification (B)
Type   JIC724A JIC724B
Raw Material   PVC PVC
Workstation   24 24
Injection Volume (Max.) cm3 770 770
Rated Injection Pressure MPa 75 75
Heating Power KW 7 7
Limit of Temperature Point 4 4
Screw Rotation Speed r.p.m 0-150 0-150
Screw Diameter mm θ70 θ70
Motor Power KW 19 19
Clamping Force T 60 60
Mould Size (Max.) mm 460 × 220 × 300 460 × 220 × 300
Mould Height mm 135-300 50-300
Machine Size mm 4050 × 4050 × 2250 4050 × 4050 × 2250
Gross Weight kg 6500 6500


 Our products have been widely sold to countries like Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia and have gained good reputation at home and abroad. We look forward to a long-term mutual-benefit commercial cooperation with our customers.
